BASWA DTG
Seamless Acoustical Plaster Applied to Drywall Framing

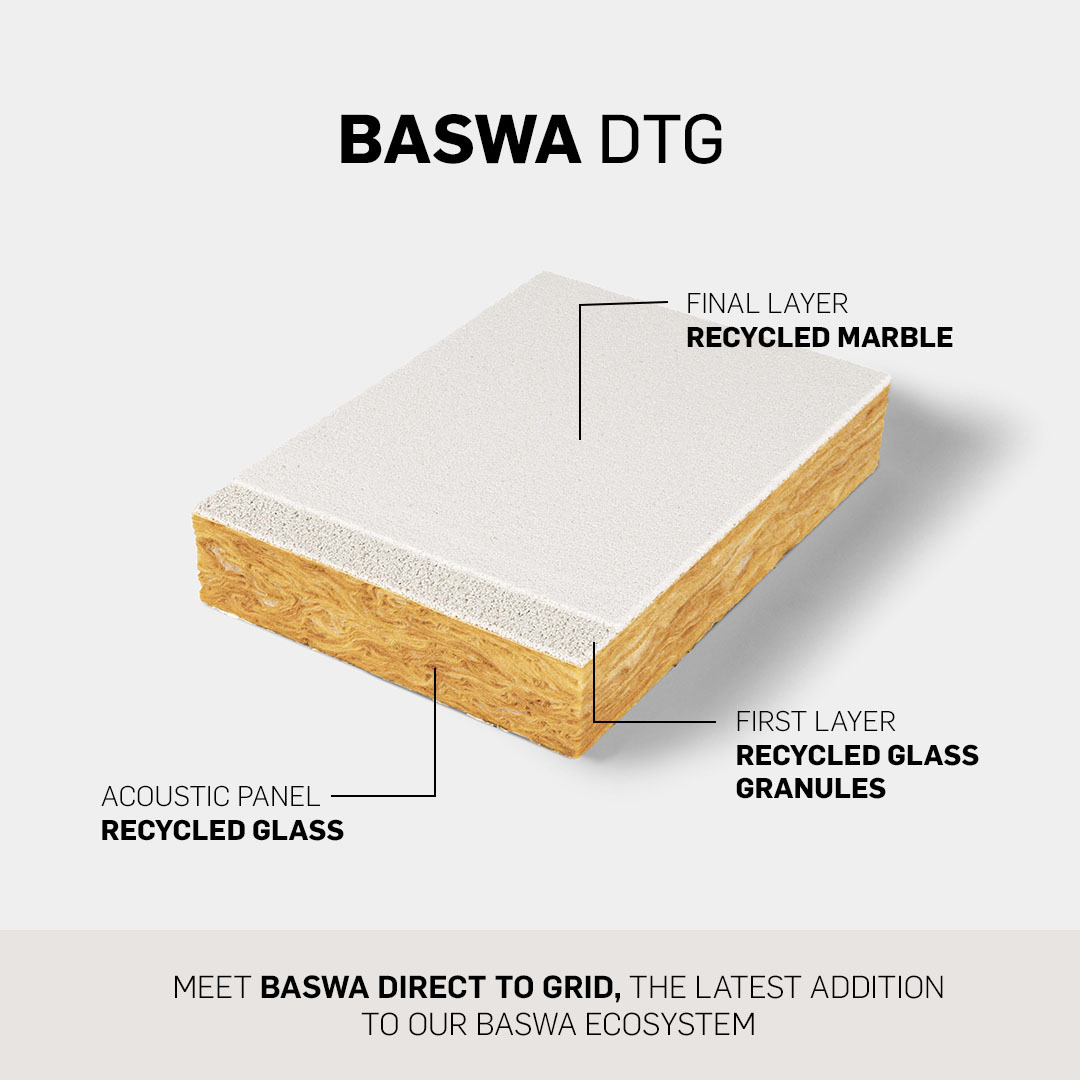

The BASWA DTG system provides a direct to drywall grid system panel, which consists of a randomly-spun, recycled mineral wool with an FRK backing for room acoustic management. Installation follows requirements per ASTM C645. BASWA DTG offers an installation timeline that is faster than typical acoustical drywall solutions, with consistent acoustic performance across the entire system surface.
In addition to NRC ratings between 0.75 and 0.80, BASWA DTG also achieves a 39 CAC rating. The system captures sound energy as it passes through the microporous, recycled marble finish and is absorbed into the panel.
Design freedom is ensured with the versatile finish and color selection, characteristic to BASWA systems. The sections below will guide you these aesthetic variables and the acoustical capabilities of BASWA DTG.
System Overview
BASWA DTG is an ideal system for spaces with constructability requirements that necessitate a direct to grid solution. It can be used in any commericial or residential projects to achieve a flat acoustic ceiling surface.
See BASWA case studies >
Substrate & Flexibility
BASWA DTG is directly applied to drywall grid systems, in complance with with ASTM C645. DTG follows flat or slightly curved substructures.
Sustainability
BASWA offers sustainable, long-lasting acoustic systems to promote healthy architecture in all spaces. BASWA DTG panels contain 90% recycled glass materials, while system finishes are produced from marble aggregate, a byproduct of stone extraction, and contain 65-95% recycled content. Free of LBC Red List materials.
HPD documents are available. Download the BASWA sustainability data sheet >
per ASTM C423
per DIN EN ISO 10848-2
per ASTM E84
per CA 01350
per Complete System
Looking for technical documents?
Visit our Downloads library for a complete collection of product literature, technical data, guide specs, details, sustainability guides, and submittal documentation.
Get BASWA Tech DataSystem Thickness
BASWA DTG is available in 30 mm thickness. Each system has its own acoustical performance profile. For precise data, access the BASWA Downloads.
30 mm - (1 ³/₁₆")
0.75 - 0.80 NRC
Best for mid-to-high frequency absorption and high CAC performance.
Choosing a Finish
BASWA's recycled marble-aggregate finishes are trowel-applied for smooth surfaces or spray-applied for texturized finishes, available in natural white stone or custom color for a highly customizable design .
A fine grain option with two coats to ensure the smoothest finish. See more >
A spray-applied finish that provides a subtle texture. See more >
Finish materials can be used to create bespoke textures and color gradients, or replicate materials like clay, concrete, or stone with texture and color variations.
See more >
Installation Overview
Process Overview

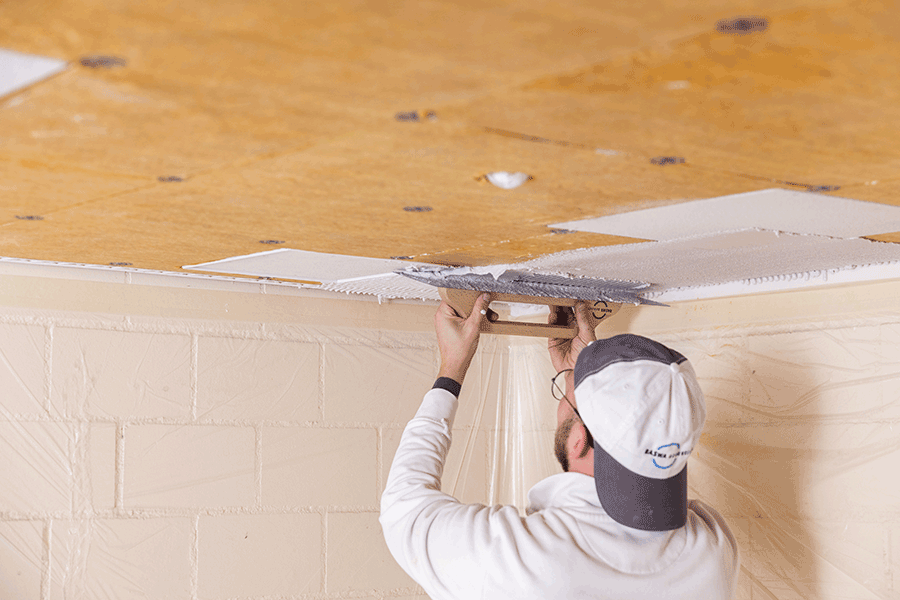

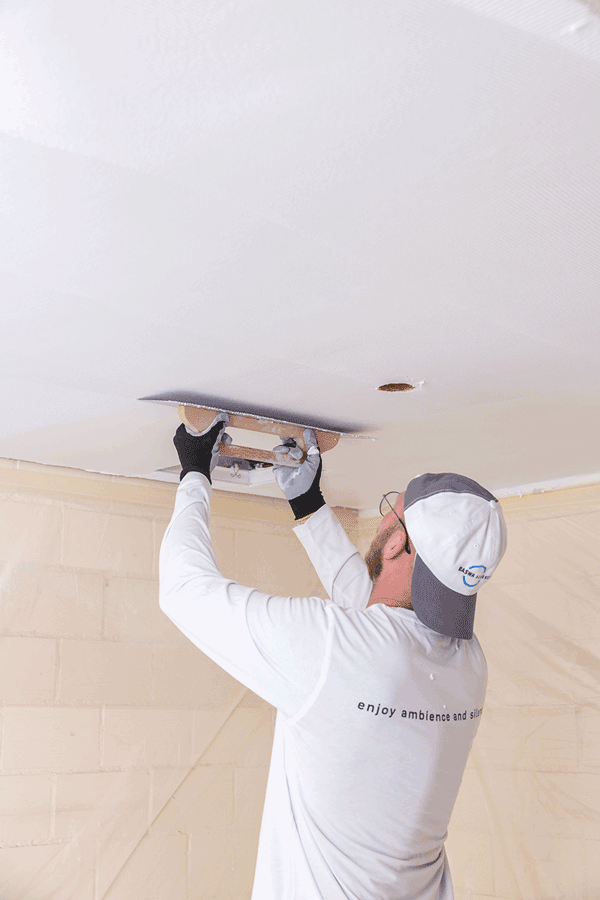

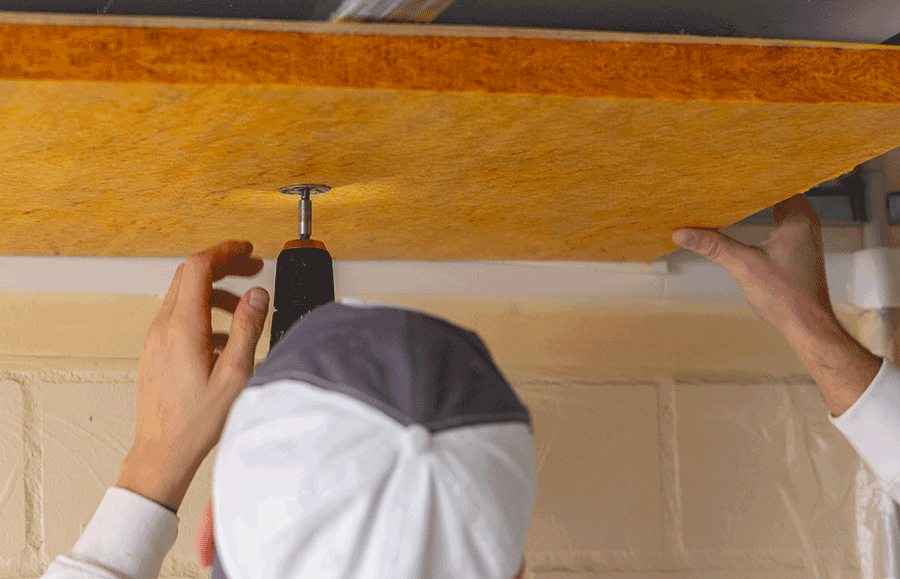

BASWA DTG panels are applied to drywall grid using screws and washers. Trims, discs and screw heads are coated with BASWA Prime. A coat of BASWA Prime is trowel applied to the entire surface. Once dry and sanded, recycled marble aggregate finishes are then trowel or spray applied, in alignment with the lighting design and geometric complexity.
Typical Installation timeline is 4-5 days. All BASWA systems are installed by local BASWA Ceritified Installers that are located throughout the world.
Learn more about the BASWA system installation >
Find a local installer >
Integrating Trimless Fixtures, Sprinklers, and Access Panels
BASWA systems easily integrate with trimless fixures and diffusors, access panels, and other fixtures.
Read the guide on seamless fixture integration >
Access the library of details for all BASWA systems >
Invisible Speakers
BASWA systems are often used in ceiling and walls with concealed speakers behind the finish in projects like home theaters, lobbies and permanent museum exhibits.
Speaker boxes are framed into the substrate and panels are fitted around them. After a mesh is installed to cover the speaker box, BASWA finishes coat the surface uniformly.
The result is a seamless finish with high-performance sound absorption that invisibly accommodates clear, crisp amplified sound.
Explore BASWA projects
BASWA systems have been installed all over the world since 1991, delivering acoustical comfort to museums, universities, private clubs, and homes. Our portfolio can offer inspiration and case studies that confidence that demonstrate a lasting value.
